Make: | BMW |
Model: | F82/83 |
Submodel: | M4 (I-6 Turbo) [2014-2020] |
ADDITIONAL OPTIONS
Make: | BMW |
Model: | F82/83 |
Submodel: | M4 (I-6 Turbo) [2014-2020] |
Weight | 60 lbs |
---|---|
Dimensions | 46 x 11 x 30 in |
Material | SUS, TI |
Performance | GT, GT-OEC, GT2, GT2-OEC, GTC, GTC-OEC |
Tip Style ( mm ) | 4×90, 4×102 |
ADDITIONAL OPTIONS
Dual 76mm connecting pipes that increases exhaust flow and provides for a straight-forward installation. Included with every rear muffler section.
A pair of cat-less downpipes which remove the primary catalytic converters in order to optimize performance and enhance exhaust sound.
A pair of cat-less downpipes which remove the primary catalytic converters in order to optimize performance and enhance exhaust sound.
A pair of cat-less downpipes which remove the primary catalytic converters in order to optimize performance and enhance exhaust sound.
Full cat-back bolt on pipes that provide for a full bolt-on installation. These dual 65mm cat-back pipes are optimized for increased horsepower.
[for BMW F80/82/83 M3/M4 I-6 Turbo]
*SUS: (T304) Stainless Steel
Full cat-back bolt on pipes that provide for a full bolt-on installation. These dual 65mm cat-back pipes are optimized for increased horsepower.
*TI: Titanium Alloy
Full cat-back bolt-on pipe that provides for a full bolt-on installation. This single 90mm cat-pack pipes combines the dual exit from the downpipe section into one single 90mm pipe that divides at the end for a direct connection to our SR pipes and rear muffler. This single LX pipe is optimized for increased torque.
*SUS: (T304) Stainless Steel
Full cat-back bolt-on pipe that provides for a full bolt-on installation. This single 90mm cat-pack pipes combines the dual exit from the downpipe section into one single 90mm pipe that divides at the end for a direct connection to our SR pipes and rear muffler. This single LX pipe is optimized for increased torque.
*TI: Titanium Alloy
Bolt-on replacement to the center section of our GT Racing rear muffler. This high-flow center section is easily interchangeable and is great for getting the most out of your vehicle for track events and high performance driving!
Upgrade your GTC EV (Electric Valves) system with a wireless remote solution that replaces the standard hardwired toggle switch. Wireless Remotes come equipped with both convenient one-touch and momentary operation, putting you in control of partial to wide open valve settings. This package includes a 12V Receiver and Two Key Fobs.
∗ Mid-Pipe sections require additional packaging and shipping charges.
In 2008 when the BMW E92 M3 was first released, we developed the Meisterschaft GT and GT2 exhaust systems which became vastly popular due to their absolutely intoxicating sound and undeniable performance. Two years later, when the newly released Meisterschaft GTC (EV Control) systems began gaining popularity, we received numerous requests to develop a Meisterschaft GTC exhaust system for the beloved V8-powered E9x M3. Thus, we went back to the drawing board and created a system which was perfect for the daily driver. In open mode, the GTC system brought out an absolutely wild, exotic, and aggressive exhaust note with unquestionable performance from the 4.0L V8. In closed mode however, that aggressive sound would become tame and docile, but would still sing a beautiful exotic song to let you know that it was a Meisterschaft.
Now, 2014, the E9x chassis is no more, and the F80/82 M3 and M4 are here. So, it’s time to show our cards!
For the first time in history, BMW has placed a forced-induction motor into an M3, and also now, they have named the 2-door version of the car, the M4. But, with the number of doors and naming put aside, we set our focus on the sound of the brand new 3.0L twin-turbocharged S55 engine. We found the OE exhaust from BMW to be quite clever, and interestingly enough, it featured electronic valve control similar to our GTC systems we had been producing for the past several years. Clever as it may be, this did not mean we could not improve on it, which we did. A lot.
Achieving the aggressive exhaust sound, as well as the performance that we were looking for out of the new M3 and M4 was not an easy feat. Countless hours, late nights, and many prototypes along the way is what it took to get us to our three exceptional designs, each engineered to perfection for the true automotive enthusiast.
Today, with more to come, we bring you the flagship model. The Meisterschaft GTC, featuring 100% manually operated electronic valve control to provide the most convenience to the user. Aggressive when YOU want it, quiet when you dont.
Pictured: 4x102mm Round Split Meisterschaft GTC (EV Control) [Incl. SR Pipes] (SUS) for the F80 M3 and F82 M4
Our electronically controlled valve system on the Meisterschaft GTC gives you the best of both worlds. With the valves in the closed position, the GTC system produces a sound that is comparable to factory, convenient for your daily commute or any other situation where you find yourself needing to ‘quiet down’ your exhaust. Open the valves and the fun begins. In performance (open) mode, the Meisterschaft GTC brings out the sound and performance of a true M car: aggressive, exotic, perfection.
Featuring dual 76mm (3-inch) inlet piping, our Meisterschaft GTC optimizes flow in performance/open mode to bring the most out of the twin turbocharged 6-cylinder. This unit is available with either our 4x90mm or 4x102mm Round Split Meisterchaft signature tips.
Pictured: Meisterschaft Section 1 Dual L.X. Pipes [with Velocity Box] (SUS) for the F80 M3 and F82 M4
Looking for more? These are our optional full cat-back Meisterschaft Dual L.X. Pipes. This set of cat-back piping features dual 65mm cat-back piping into our high-flow velocity chamber and back out to dual 76mm piping for a direct connection to our SR pipes and rear muffler section resulting in a full bolt-on installation. Additionally, our Dual L.X. Pipe section is optimized for horsepower gain. In the near future you can also expect to see a single version of our L.X. pipe – featuring enlarged piping diameter and optimization for torque gain.
Pictured: Meisterschaft Down Pipe Section- cat elimination Pipes (SUS) for the F80 M3 and F82 M4
For the real enthusiasts looking squeeze the absolute most power out of their vehicles, we bring you these, Meisterschaft Cat-less Downpipes. These remove the primary catalytic converters allowing the turbos to breathe freely and work more efficiently, resulting in significantly increased power. Pair these cat-less downpipes with our full cat-back Meisterschaft exhaust and a tune of your choice, sky is the limit!
In our last post, when we released the Meisterschaft GTC (EV Control) for the all new BMW M3 and M4, we mentioned there was more to come… Well, here it is. The second installment of Meisterschaft exhaust products for the latest BMW M!
We understand that a valve controlled exhaust is not ideal for everyone, this is why we are bringing more to the table. Following in the footsteps of the E9x M3, the familiar GT and GT2 will live on, now with an all new modular design for the F8x M3 and M4.
Let’s begin with the GT Racing.
Pictured: Meisterschaft GT Racing (SUS) with 4x102mm Round Split Tips
Introducing our GT Racing system tailored for the F8x M3 and M4, engineered to elevate your vehicle’s street performance to unprecedented levels. Unlike the stock 63mm piping, our GT Racing unit features a robust 76mm piping that seamlessly transitions into our innovative dual velocity chamber design. Meticulously crafted velocity chambers are optimized to enhance flow dynamics, effectively expelling exhaust gases with heightened velocity, thus mitigating back-pressure and unlocking greater power potential from the twin-turbocharged engine.
The exhaust note emitted by the GT Racing system is nothing short of exceptional. Offering a harmoniously balanced spectrum from the deepest lows to the highest peaks, the sound profile of the GT Racing system is distinct, refined, and assertive.
Considering the widespread popularity of the M3 as a track day favorite, we tailored our design with track enthusiasts in mind. This is where the GT2 Performance system comes into play. By opting for the Meisterschaft GT2 Package for your M3 or M4, you’ll receive a Performance X-Pipe section, seamlessly replacing the stock muffler canister in our rear section, ideal for track days and high-performance driving endeavors.

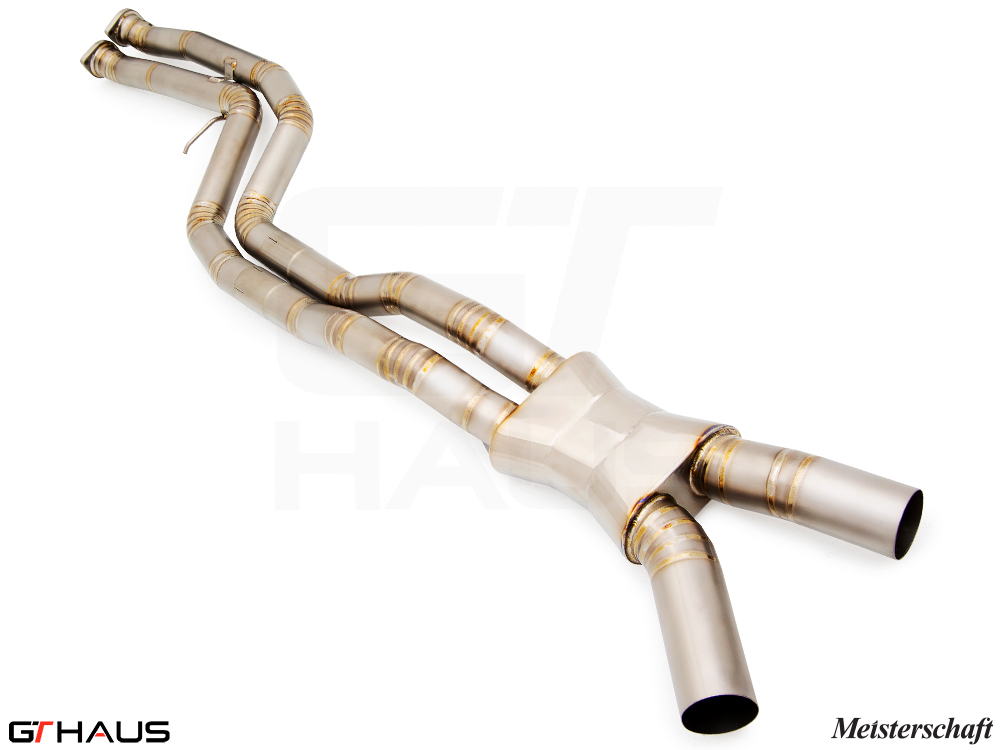

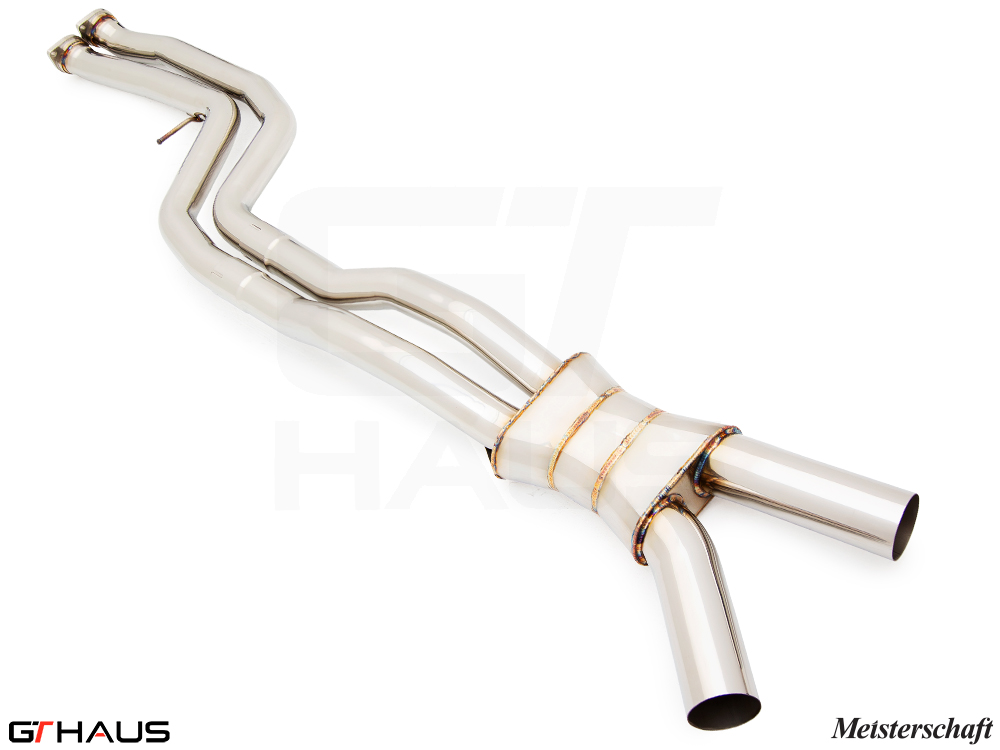

Pictured: Meisterschaft GT2 Performance X-Pipe for the F8x M3/M4 GT2 Performance system (Included SR Pipes are not pictured)
Pictured: Meisterschaft GT2 Performance system. (Included SR Pipes are not pictured)
The GT2 Performance X-Pipe doesn’t just amplify high-end power output; it also serves as a means of reducing sprung weight, making it an ideal companion for track day excursions!
Unsurprisingly, the GT2 Performance X-Pipe also leaves its mark on the auditory experience. The result? An exotic, higher-pitched, aggressively captivating sound!
Included with both our GT Racing and GT2 Performance systems are our 76mm SR Connecting Pipes. These facilitate a straightforward cut and slip-on installation process, eliminating the need for welding.
Equipped with a Meisterschaft full turbo back configuration including catless downpipes, single 90mm cat-back LX pipe, and TITANIUM GT Racing rear muffler section, the car put down phenomenal numbers on our Mustang Dyno. No flashes or piggyback tunes were used, the cars software was 100% stock.
Why GTHAUS?
Sound, performance, and build quality. Since the beginning, we at GTHAUS have strived to set our brand above the rest, we’ve done so by combining these key components: Sound, Performance, Build Quality.
Style
Meisterschaft Premium exhaust systems utilize traditional and modern styling to create the world’s most advanced exhaust system. From the high polish exterior finish to the marvelous hand welds, Meisterschaft exhaust systems look as beautiful as they sound..
Sound
Second to none. Meisterschaft, MUSA, and American Roar Racing exhaust systems provide the most unique exhaust notes that you’ll find in the industry, period. Our exhaust systems are custom tailored to each specific vehicle without the use of any universal parts. Countless hours of R&D are undergone to achieve pitch perfection from each vehicle. The result is an exhaust system that is as well tuned as a fine musical instrument, delivering an exotic, unique, and aggressive sound.
Performance
Our Meisterschaft, MUSA, and American Roar Racing exhaust systems are engineered to provide maximum power gain at the wheels. Power gains are realized using a state-of-the-art all-wheel-drive Mustang Dynamometer at our in-house research and development facility. Performance can be maximized if Meisterschaft rear muffler sections are used in conjunction with optional mid-pipe section(s) and/or catalytic replacement section(s).
What is the difference between GTS and GTC?
GTC (EV Control) exhaust systems are the world’s most technologically advanced units on the market. The GTC exhaust system utilizes electronic valves which control the “open” and “close” functions of the exhaust system. This allows the user to control the sound level, exhaust back pressure, and overall vehicle performance.
The GTS (Ultimate Performance) exhaust systems are engineered for enthusiasts who want a no nonsense exhaust system that will perform and produce a superior sound at all times.
Build Quality
Meisterschaft, MUSA, and American Roar Racing exhaust systems are 100% hand-built. Each exhaust system is carefully TIG-welded by our artisan fabricators using only the best available materials. Our stainless steel (SUS) systems are produced using Type 304 stainless steel and high grade titanium alloy for our Titanium (Ti) exhaust systems.Using high grade materials enhances the durability and lifespan of the exhaust system.
As such, Meisterschaft exhaust systems do not suffer from corrosion when exposed to the elements, so there’s no need to worry about rust developing over time. Meisterschaft exhaust systems utilize the highest quality and most durable glass wool pack. Using the best materials allows Meisterschaft exhaust systems to endure the extreme temperatures and conditions it faces on a daily bases which aids to the longevity of the exhaust systems.
Premium Materials
Meisterschaft uses only the highest grade T304/T316 stainless steel sourced from POSCO to create Meisterscahft stainless steel (SUS) exhaust systems. Premium titanium alloy from Nippon Steel and POSCO are used in the construction of Meisterschaft titanium (Ti) exhaust systems.
Product Selections
GTHAUS is the Global distributor of Meisterschaft Premium exhaust systems. Meisterschaft products are sold in various performance levels, tip styles and finishes to suit individual specifications and requirements.
Weight Savings
Meisterschaft exhaust systems are significantly lighter than the Original Equipment Manufacture (OEM) unit’s overall carrying weight. Meisterschaft stainless steel (SUS) exhaust systems typically weight 35% to 50% less than the OEM units. In addition to our stainless steel exhaust system, our titanium (Ti) exhaust system offers a weight reduction of 75% to 80% when compared to the OEM unit..
Quality Assurance
Meisterschaft exhaust systems go through a series of vigorous inspections to assure the highest quality product. Units are pre-tested and quality control checked after every step of the manufacturing process. All final inspections are performed by chief engineers to guarantee perfection.
